Lemo 00 - SMA Male Single Coaxial UT Cable

Name: Lemo 00 SMA Male Single Coaxial UT Cable
Brand: HUATEC
Price: 60 USD

China Lemo 00 - SMA Male Single Coaxial UT Cable wholesale

Brand Name : HUATEC

Certification : CE

Place of Origin : China

MOQ : 1 pc

Price : USD60

Payment Terms : T/T,Paypal

Supply Ability : 10sets/Month

Delivery Time : 7-10 working days after receipt of your payment

Packaging Details : Carton packing box

interface : Lemo 00 - SMA Male

Contact Now

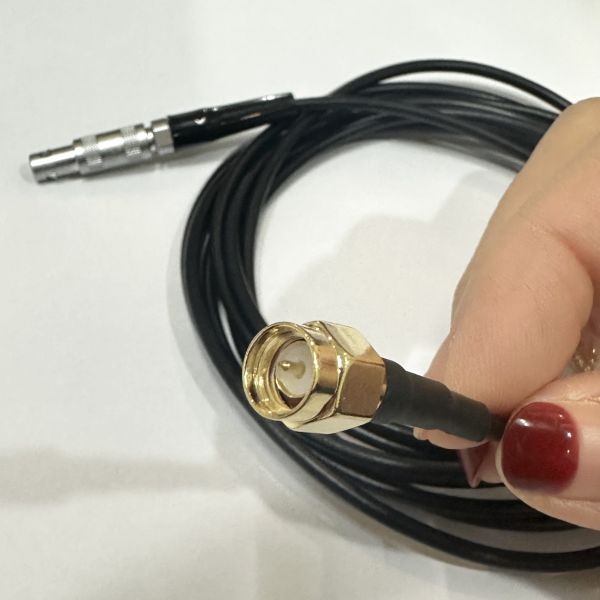

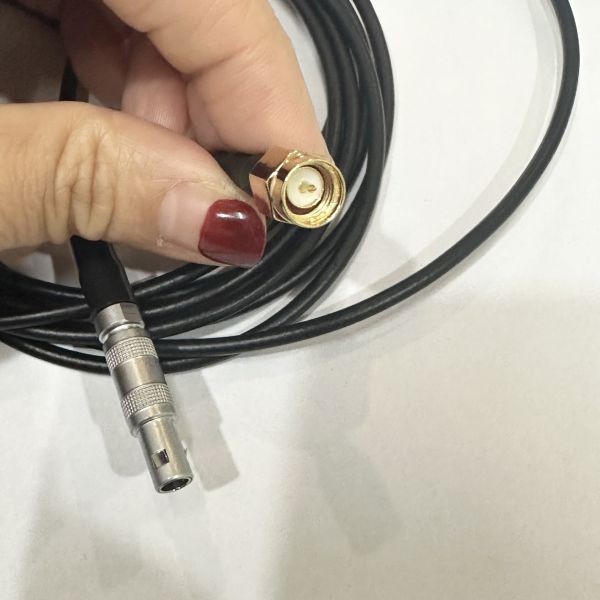

Lemo 00 - SMA Male Single Coaxial UT Cable

Shell material
Lemo 00 end: Chrome-plated brass housing (SAE AMS 2460), nickel-plated brass lock sleeve; SMA end: Usually nickel-plated brass
Insulator material: Polytetrafluoroethylene (PTFE)
Connection method: Push-pull self-locking at Lemo 00 end and threaded connection at SMA end

Core basic information

Parameter	For details
Connector assembly	One end is a Lemo 00 series male connector (push-pull self-locking), and the other end is an SMA male connector (threaded connection)
Contact type	50Ω coaxial, center contact diameter 0.7mm, barrel diameter 0.6mm
Positioning key	Circular positioning
Adapt to the outer diameter of the cable	It is compatible with the common 1.8-3.6mm Lemo 00 terminal, and the SMA terminal is compatible with conventional RF cables (such as RG174, RG316, etc.)

Operating temperature: -55℃ to + 250℃
Protection grade: IP50
Salt spray resistance: > 1000 hours
Shielding effectiveness: ≥75dB at 10 MHZ and ≥40dB at 1GHz
Common cable models: low-loss coaxial cables such as RG174, RG316, Storm 421-099, etc

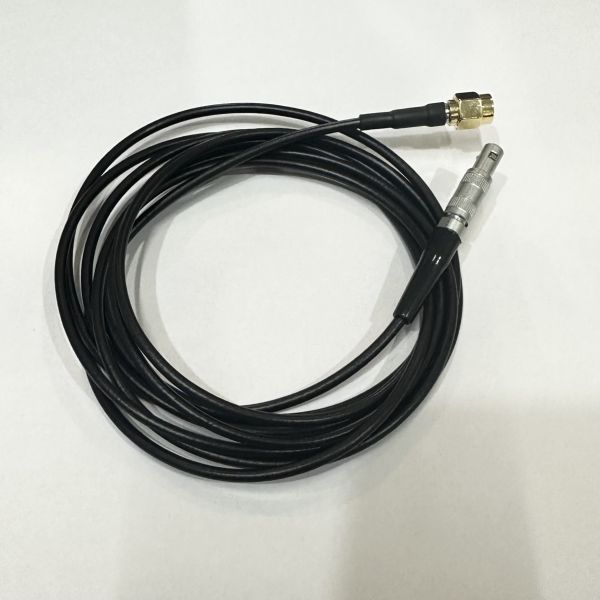

Lemo 00 - SMA Male Single Coaxial UT Cable
