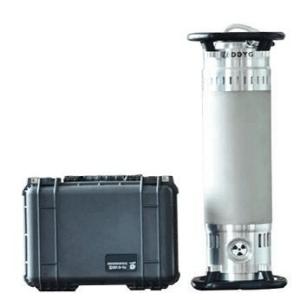

Portable High Frequency X ray Flaw Detector

  • 1
  • 2

Brand Name : HUATEC

Model Number : XXG-300GF

Certification : ISO

Place of Origin : CHINA

MOQ : 1pc

Payment Terms : T/T, Western Union/Paypal

Supply Ability : 500PCS

Delivery Time : 5-8 working days

Packaging Details : Wooden

Name : High frequency X-ray flaw detector

kV Adjustment range : 120～300 kV

mA Adjustment range : 0.5～3 mA(Stepping 0.1mA)

Maximum power : 900W

Contact Now

Portable high frequency X-ray flaw detector

Main performance:

n Continuous exposure under the conditions of 35℃ 300kv/3mA, 250kv/3mA;

n Wide input voltage range to meet the power supply of various generators;

n Lightweight, strong penetration, stable performance;

n More suitable for use in harsh and humid environments;

n The operation interface is intuitive and easy to operate;

Main technical parameters

project name XXG-300GF XXG-250GF
X-ray generator Weight 27kg 25kg
Dimensions Φ295×752 (Φ×L) Φ295×704 (Φ×L)
Controller Weight 11kg 11kg
Dimensions 410×228×300 (L×B×H) 410×228×300 (L×B×H)
Focus size 3.0×3.0 3.0×3.0
Radiation angle 40°×40° 40°×40°
Maximum penetration(Fe) 70mm (A3) 60mm (A3)
kV Adjustment range 120～300 kV 70～250 kV
mA Adjustment range 0.5～3 mA(Stepping 0.1mA) 0.5～3 mA(Stepping 0.1mA)
Maximum power 900W 900W
Leakage radiation value maximum 5.0msv/h maximum 5.0msv/h
Operating temperature -20˚C～+50˚C -20˚C～+50˚C
Storage temperature -25˚C～+70˚C -25˚C～+70˚C
Voltage 85～264 VAC 85～264 VAC
Power frequency 45～65 Hz 45～65 Hz

Portable High Frequency X ray Flaw Detector
